Pull And Push Hydraulic Quick Connect Couplings ISO5675 Rated Flow 12 GPM

Ask Lasest Price
Brand Name :	SONGQIAO
Model Number :	LSQ-S5/LSQ-S5C
Supply Ability :	50,000pcs/day, according the capacity of the assembly workshop
Delivery Time :	within 30 days or as per customers' requirement.
Price :	negotiable

Add to Cart

Product Details
Company Profile

Pull And Push Hydraulic Quick Connect Couplings ISO5675 Rated Flow 12 GPM

LSQ-S5/LSQ-S5C(Bulkhead), ISO5675, Pull and Push Type Hydraulic Couplings in Carbon Steel, Chrome Three

Descripton:

LSQ-S5/LSQ-S5C Push And Pull Type Hydraulic Quick Coupling(Steel)
Applications: The LSQ-S5 and LSQ-S5C Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Specifications:

Body Size(in)	1/2
Rated Pressure(PSI)	3000
Rated Flow(GPM)	12
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

LSQ-S5 and LSQ-S5C Series Couplings feature:
1. Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2. Poppet valves available to prevent uncoupled leakage.
3. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4. Critical parts are hardened for durability.
5. Dependable ball-locking mechanism holds the mating halves together.
6. Socket and plug are precision machined from solid bar stock.
7. LSQ-S5 series conforms to the standard of ISO5675.

8. Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

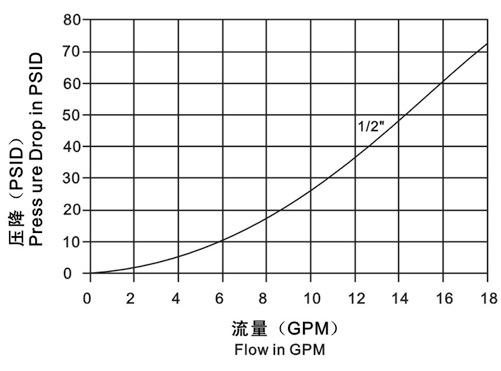

Performance:Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

LSQ-S5 Series(1/2")

Socket

ISO	PARTNO.	LS	￠D	HEX1	T
12.5	LSQ-S5-04SF3/8	66	38	27	3/8BSP NPT3/8
12.5	LSQ-S5-04SF1/2	66	38	27	1/2BSP NPT1/2
12.5	LSQ-S5-04SF3/4	69	38	34	3/4BSP NPT3/4
12.5	LSQ-S5-04SFM14	66	38	27	M14*1.5
12.5	LSQ-S5-04SFM16	66	38	27	M16*1.5
12.5	LSQ-S5-04SFM18	66	38	27	M18*1.5
12.5	LSQ-S5-04SFM22	66	38	27	M22*1.5

Plug

ISO	PARTNO.	LP	d	C	HEX2	T
12.5	LSQ-S5-04PF3/8	61.5	20.5	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04PF1/2	44	20.5	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04PF3/4	64.5	20.5	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04PFM14	61.5	20.5	27	27	M14*1.5
12.5	LSQ-S5-04PFM16	61.5	20.5	27	27	M16*1.5
12.5	LSQ-S5-04PFM18	61.5	20.5	27	27	M18*1.5
12.5	LSQ-S5-04PFM22	44	20.5	27	27	M22*1.5

Coupled

ISO	PARTNO.	L	￠D	HEX1	HEX2	T
12.5	LSQ-S5-04F3/8	105.5	38	27	27	3/8BSP NPT3/8
12.5	LSQ-S5-04F1/2	105.5	38	27	27	1/2BSP NPT1/2
12.5	LSQ-S5-04F3/4	105.5	38	34	34	3/4BSP NPT3/4
12.5	LSQ-S5-04FM14	105.5	38	27	27	M14*1.5
12.5	LSQ-S5-04FM16	105.5	38	27	27	M16*1.5
12.5	LSQ-S5-04FM18	105.5	38	27	27	M18*1.5
12.5	LSQ-S5-04FM22	105.5	38	27	27	M22*1.5

|--LSQ-S5 Socket--|

ISO	PARTNO.	LS	￠D	HEX1	A	T
12.5	LSQ-S5-04SM8L	73.5	38	27	12	M14*1.5
12.5	LSQ-S5-04SM10L	73.5	38	27	12	M16*1.5
12.5	LSQ-S5-04SM12L	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM15L	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM18L	75.5	38	27	14	M26*1.5
12.5	LSQ-S5-04SM10S	73.5	38	27	12	M18*1.5
12.5	LSQ-S5-04SM12S	73.5	38	27	12	M20*1.5
12.5	LSQ-S5-04SM14S	75.5	38	27	14	M22*1.5
12.5	LSQ-S5-04SM16S	75.5	38	27	14	M24*1.5
12.5	LSQ-S5-04SM20S	77.5	38	30	16	M30*2

|--LSQ-S5 Plug--|

ISO	PARTNO.	LP	d	C	HEX1	A	T
12.5	LSQ-S5-04PM8L	58.5	20.5	27	27	12	M14*1.5
12.5	LSQ-S5-04PM10L	58.5	20.5	27	27	12	M16*1.5
12.5	LSQ-S5-04PM12L	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM15L	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM18L	60.5	20.5	27	27	14	M26*1.5
12.5	LSQ-S5-04PM10S	58.5	20.5	27	27	12	M18*1.5
12.5	LSQ-S5-04PM12S	58.5	20.5	27	27	12	M20*1.5
12.5	LSQ-S5-04PM14S	60.5	20.5	27	27	14	M22*1.5
12.5	LSQ-S5-04PM16S	60.5	20.5	27	27	14	M24*1.5
12.5	LSQ-S5-04PM20S	62.5	20.5	27	30	16	M30*2

|--LSQ-S5 Coupled--|

ISO	PARTNO.	L	D	HEX1	HEX2	T
12.5	LSQ-S5-04-8L	109.5	38	27	27	M14*1.5
12.5	LSQ-S5-04-10L	109.5	38	27	27	M16*1.5
12.5	LSQ-S5-04-12L	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-15L	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-18L	113.5	38	27	27	M26*1.5
12.5	LSQ-S5-04-10S	109.5	38	27	27	M18*1.5
12.5	LSQ-S5-04-12S	109.5	38	27	27	M20*1.5
12.5	LSQ-S5-04-14S	113.5	38	27	27	M22*1.5
12.5	LSQ-S5-04-16S	113.5	38	27	27	M24*1.5
12.5	LSQ-S5-04-20S	115.5	38	30	30	M30*2

|--LSQ-S5C Socket--|

ISO	PARTNO.	LS	￠D	HEX1	HEX2	T
12.5	LSQ-S5C-04SM8L	87	38	27	19	M14*1.5
12.5	LSQ-S5C-04SM10L	87	38	27	24	M16*1.5
12.5	LSQ-S5C-04SM12L	87	38	27	24	M18*1.5
12.5	LSQ-S5C-04SM15L	89	38	27	27	M22*1.5
12.5	LSQ-S5C-04SM18L	89	38	27	30	M26*1.5
12.5	LSQ-S5C-04SM10S	87	38	27	24	M18*1.5
12.5	LSQ-S5C-04SM12S	87	38	27	27	M20*1.5
12.5	LSQ-S5C-04SM14S	89	38	27	27	M22*1.5
12.5	LSQ-S5C-04SM16S	89	38	27	30	M24*1.5
12.5	LSQ-S5C-04SM20S	96	38	30	36	M30*2

|--LSQ-S5C Plug--|

ISO	PARTNO.	LP	d	C	HEX1	HEX3	T
12.5	LSQ-S5C-04PM8L	72	20.5	27	19	27	M14*1.5
12.5	LSQ-S5C-04PM10L	72	20.5	27	24	27	M16*1.5
12.5	LSQ-S5C-04PM12L	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM15L	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM18L	74	20.5	27	30	27	M26*1.5
12.5	LSQ-S5C-04PM10S	72	20.5	27	24	27	M18*1.5
12.5	LSQ-S5C-04PM12S	72	20.5	27	27	27	M20*1.5
12.5	LSQ-S5C-04PM14S	74	20.5	27	27	27	M22*1.5
12.5	LSQ-S5C-04PM16S	74	20.5	27	30	27	M24*1.5
12.5	LSQ-S5C-04PM20S	81	20.5	27	36	30	M30*2

|--LSQ-S5C Coupling Fitting--|

ISO	PART NO.	L	￠D	HEX1	HEX2	HEX3	T
12.5	LSQ-S5C-04-8L	137.5	38	27	19	27	M14*1.5
12.5	LSQ-S5C-04-10L	137.5	38	27	24	27	M16*1.5
12.5	LSQ-S5C-04-12L	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-15L	143.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-18L	143.5	38	27	30	27	M26*1.5
12.5	LSQ-S5C-04-10S	137.5	38	27	24	27	M18*1.5
12.5	LSQ-S5C-04-12S	137.5	38	27	27	27	M20*1.5
12.5	LSQ-S5C-04-14S	137.5	38	27	27	27	M22*1.5
12.5	LSQ-S5C-04-16S	143.5	38	27	30	27	M24*1.5
12.5	LSQ-S5C-04-20S	145.5	38	30	36	30	M30*2
