Japanese Type Hydraulic Quick Coupling with 1000 to 2000 Psi Pressure Range and 1/8 to 1/2 Inch Sizes

Descripton:

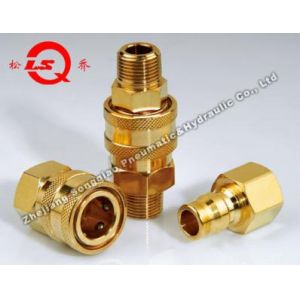

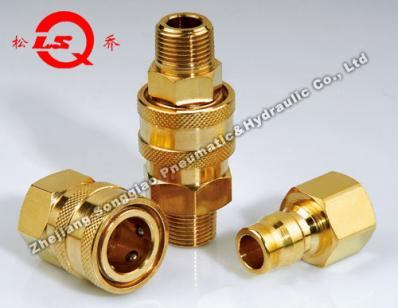

LSQ-RD Japanese type hydraulic quick coupling
Applications: The LSQ-RD Series are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
Specifications:

Body Size(in)1/81/43/81/2
Rate Pressure(PSI)
Brass Cplr/Npl1000100010001000
SS Cplr/Npl2000200015001500
Rated Flow(GPM)361212
Temperature Range(std seals)-20ºC to +120ºC


LSQ-RD Features:
1.The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2.LSQ-RD couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.LSQ-RD nipples are available in brass and 304 stainless steel as standard product materials.
4.LSQ-RD nipples are available in 304 stainless steel, brass.
5.The LSQ-RD is an "interchange" coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6.Compatible with NITTO TSP Series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa


PART NO.LS¢DHEX1AT
LSQ-RD-01SF2717.5149ZG1/8
LSQ-RD-02SF32241913ZG1/4
LSQ-RD-03SF35.828.32313ZG3/8
LSQ-RD-04SF42.6352917ZG1/2
LSQ-RD-06SF49.5413618ZG3/4
LSQ-RD-08SF59.357.85022ZG1



PART NO.LS¢DHEX1AT
LSQ-RD-01SM3017.5149ZG1/8
LSQ-RD-02SM42241913ZG1/4
LSQ-RD-03SM46.328.32313ZG3/8
LSQ-RD-04SM56.1352917ZG1/2
LSQ-RD-06SM61413618ZG3/4
LSQ-RD-08SM67.357.85022ZG1

PART NO.LPCHEX2AT
LSQ-RD-01PF2615.5149ZG1/8
LSQ-RD-02PF35181713ZG1/4
LSQ-RD-03PF3821.22113ZG3/8
LSQ-RD-04PF4524.52917ZG1/2
LSQ-RD-06PF50283218ZG3/4
LSQ-RD-08PF61364122ZG1

PART NO.LPCHEX1AT
LSQ-RD-01PM3215.5129ZG1/8
LSQ-RD-02PM38181713ZG1/4
LSQ-RD-03PM4321.21913ZG3/8
LSQ-RD-04PM5224.52317ZG1/2
LSQ-RD-06PM56282918ZG3/4
LSQ-RD-08PM73364122ZG1
